Sunday Wave C 24" Frame

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Sunday Wave C 24" Frame

Sunday Wave C 24" Frame

People thought the aftermarket 24" Sunday frames were dead and gone, but here we are over a decade later with a fresh revamped version. Back and better than ever!

  • 100% 4130 Chromoly Frame
  • Proven 24" geometry that rides like a pro-level 20" bike
  • Wave Down Tube:
    Down tube dents can significantly weaken the front end of your bike. The Wavelength's double-butted, 1.45" diameter down-tube features Sunday's proven Wave shaping to help fight against denting from rails, ledges, coping and whatever else happens to get thrown at it.

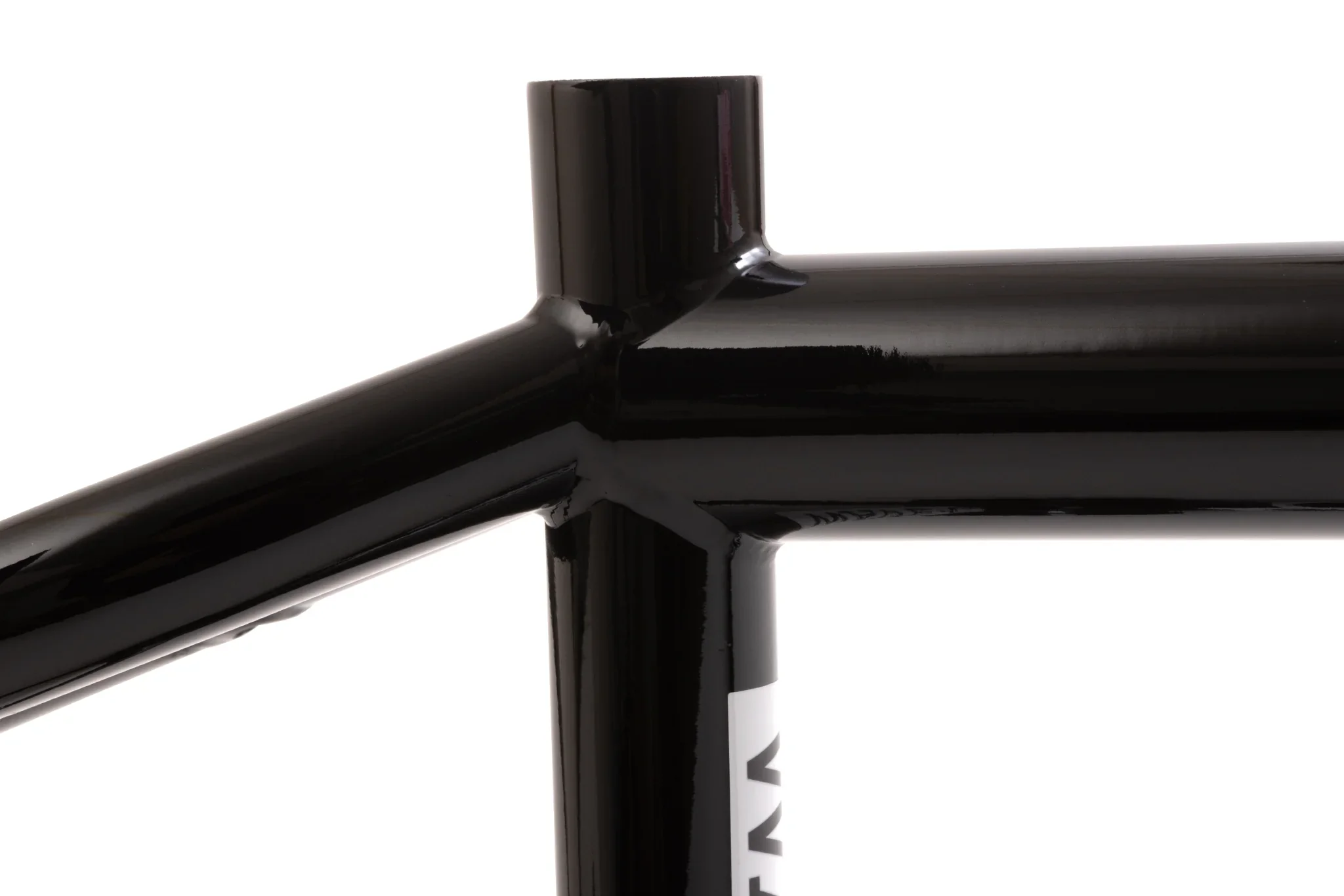

  • Miter Cut Top Tube:
    A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.

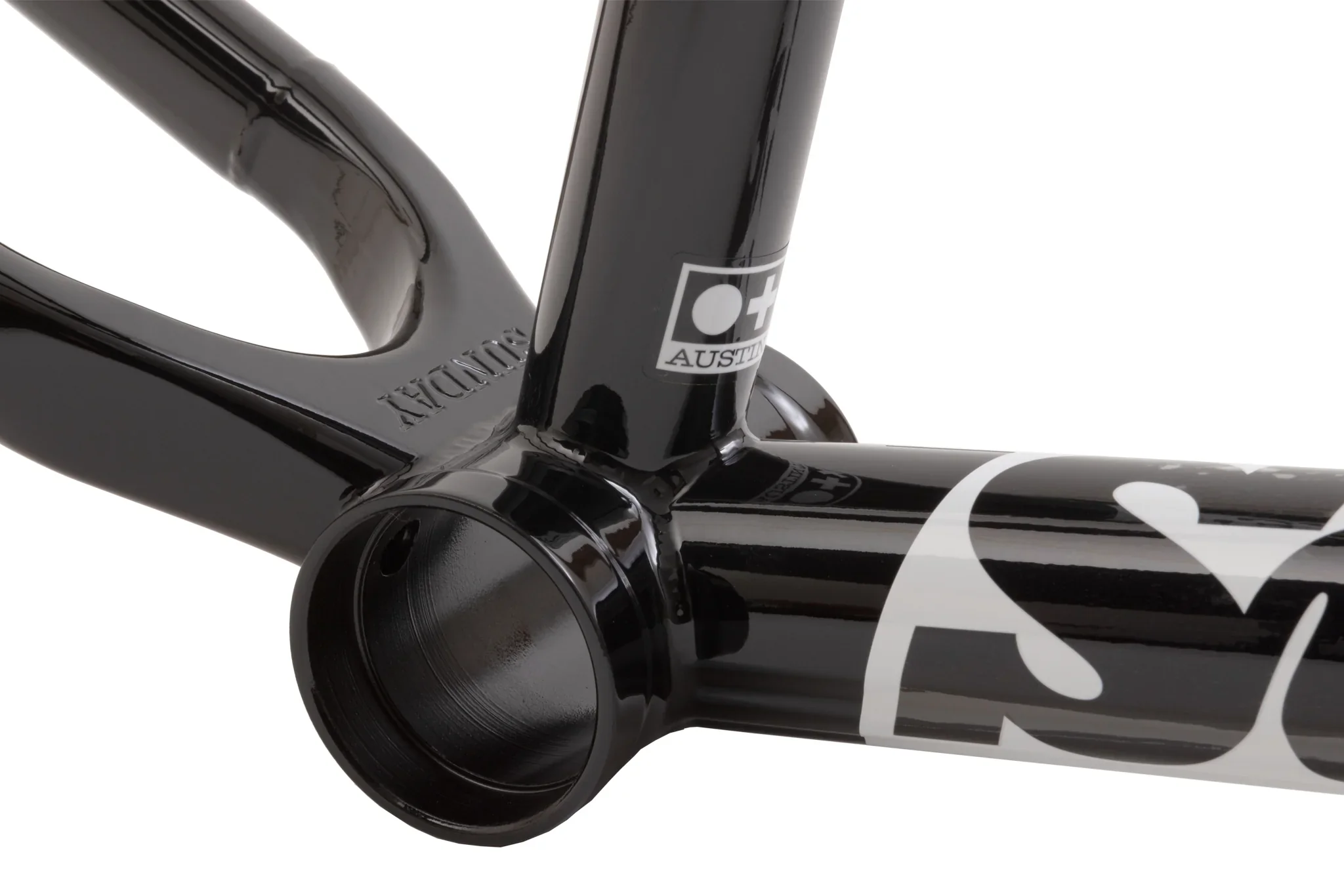

  • Hollow Chainstay Yoke:
    An all new yoke design allows for an ultra-short chainstay length for improved maneuverability
  • Tapered Chain & Seat Stays:
    Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.

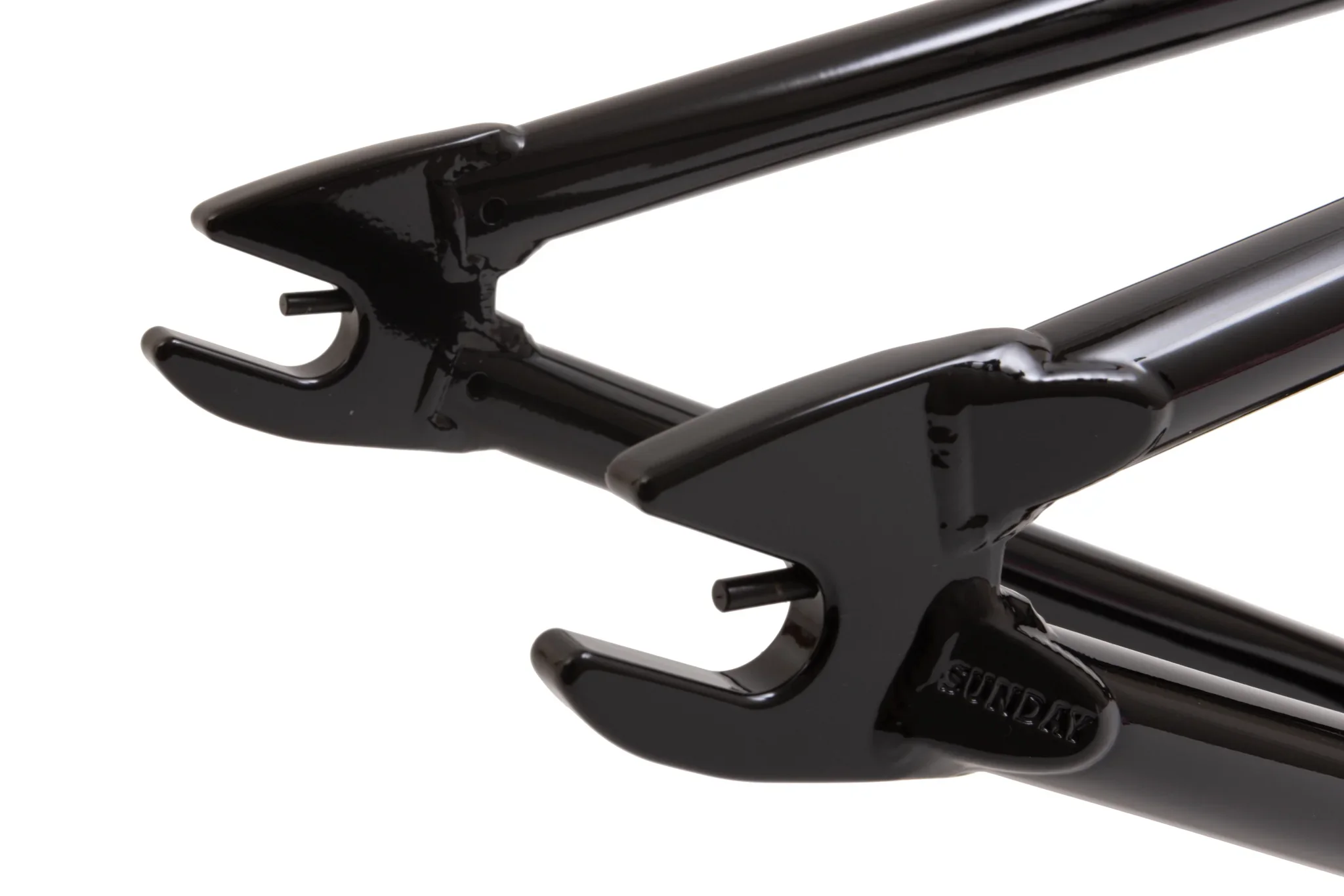

  • Hollow Dropouts with Chain Tensioners:
    Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal.
  • Removable Brake Hardware:
    Refined removable brake mounts and cable channel improvements that provides benefits with or without a brake setup.
  • Rust Proof Coating:
    All Sunday frames are rust-proofed with "Black Magic" coating before the final finish is applied. It is lightweight and the best anti-corrosion processing that's offered today.

Top Tube Length: 22"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 14.1"-14.35”
Bottom Bracket Height: 13”
Standover: 9.125”
Tire Clearance: 2.2”
Head Tube: 4.8”
Weight: 5.9 lbs
Gear Ratio: 25/10

$192.48

Original: $549.95

-65%
Sunday Wave C 24" Frame

$549.95

$192.48

Product Information

Shipping & Returns

Description

People thought the aftermarket 24" Sunday frames were dead and gone, but here we are over a decade later with a fresh revamped version. Back and better than ever!

  • 100% 4130 Chromoly Frame
  • Proven 24" geometry that rides like a pro-level 20" bike
  • Wave Down Tube:
    Down tube dents can significantly weaken the front end of your bike. The Wavelength's double-butted, 1.45" diameter down-tube features Sunday's proven Wave shaping to help fight against denting from rails, ledges, coping and whatever else happens to get thrown at it.
  • Miter Cut Top Tube:
    A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
  • Hollow Chainstay Yoke:
    An all new yoke design allows for an ultra-short chainstay length for improved maneuverability
  • Tapered Chain & Seat Stays:
    Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
  • Hollow Dropouts with Chain Tensioners:
    Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal.
  • Removable Brake Hardware:
    Refined removable brake mounts and cable channel improvements that provides benefits with or without a brake setup.
  • Rust Proof Coating:
    All Sunday frames are rust-proofed with "Black Magic" coating before the final finish is applied. It is lightweight and the best anti-corrosion processing that's offered today.

Top Tube Length: 22"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 14.1"-14.35”
Bottom Bracket Height: 13”
Standover: 9.125”
Tire Clearance: 2.2”
Head Tube: 4.8”
Weight: 5.9 lbs
Gear Ratio: 25/10
