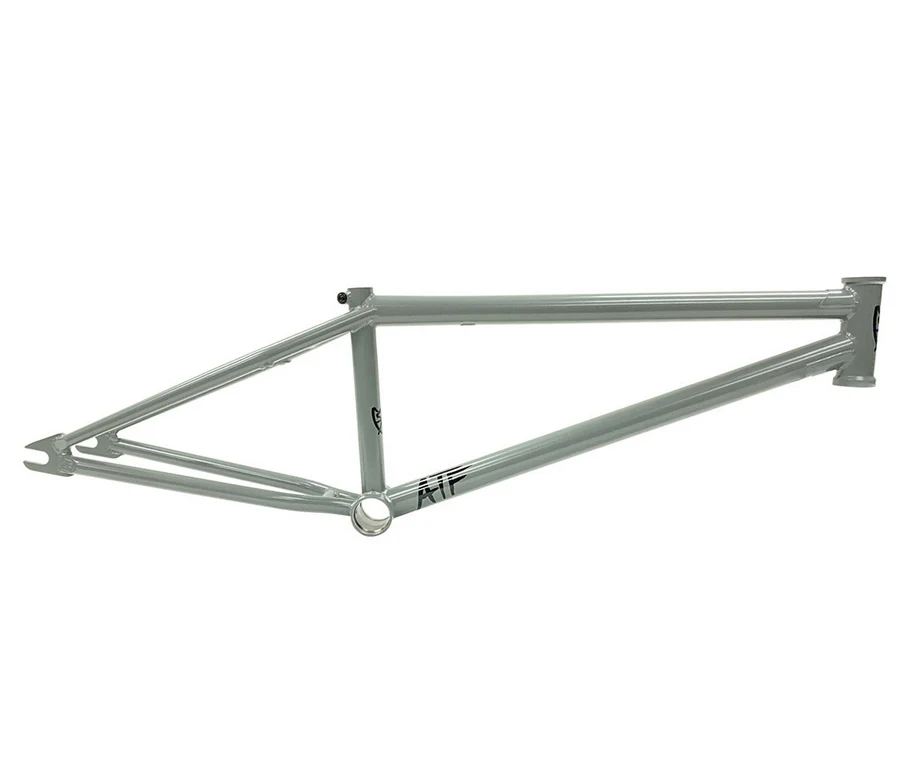

S&M ATF Frame for 22" Wheels

The S&M ATF Frame for 22" Wheels is built just like the normal ATF frame but just a bit bigger to work with 22" wheels. The S&M Frames are all made in SoCal in the USA and are the highest of quality.

TOP TUBE LENGTHS:	21.625″ , 22.125″
REAR END LENGTH:	14.1″
HEAD TUBE ANGLE:	74.25°
STANDOVER HEIGHT:	9″
BOTTOM BRACKET HEIGHT:	12.25″
SEAT TUBE ANGLE:	71°
HEAD TUBE:	Integrated Campy Style
BOTTOM BRACKET STYLE:	Mid w/EZ-out punch slots
BRAKE MOUNTS:	Thread On 990 (Mounts sold separately)
DROPOUTS:	14mm
SEAT POST SIZE:	1″ / 25.4mm
WEIGHT:	5.29 lbs.

Product Information

Shipping & Returns

S&M ATF Frame for 22" Wheels

The S&M ATF Frame for 22" Wheels is built just like the normal ATF frame but just a bit bigger to work with 22" wheels. The S&M Frames are all made in SoCal in the USA and are the highest of quality.

TOP TUBE LENGTHS:	21.625″ , 22.125″
REAR END LENGTH:	14.1″
HEAD TUBE ANGLE:	74.25°
STANDOVER HEIGHT:	9″
BOTTOM BRACKET HEIGHT:	12.25″
SEAT TUBE ANGLE:	71°
HEAD TUBE:	Integrated Campy Style
BOTTOM BRACKET STYLE:	Mid w/EZ-out punch slots
BRAKE MOUNTS:	Thread On 990 (Mounts sold separately)
DROPOUTS:	14mm
SEAT POST SIZE:	1″ / 25.4mm
WEIGHT:	5.29 lbs.

Select Options

From $181.98

Original: $519.95

S&M ATF Frame for 22" Wheels—

$519.95

$181.98
